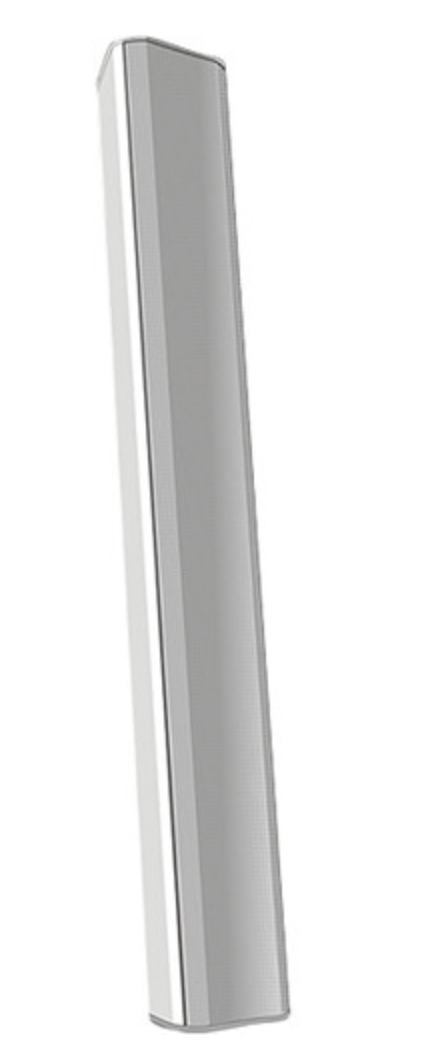

QSC AcousticDesign Series 16-Driver Column Surface-Mount Loudspeaker

QSC AD-S162T Overview






The AcousticDesign series AD-S162T is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of 70 V/100 V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.






Key Features



Deliberately unobtrusive industrial design
Paintable enclosure and grill
Complete EASE, CLF, CAD and BIM information
Rugged aluminum construction
IP54 rating for dust and splash resistance
Powder-coated grills and weather-treated cones
Low-saturation 70/100 V transformers
8 ohm low-impedance bypass
Selectable broad/narrow beam contour


QSC AD-S162T Specs


General



Product Type
Speaker


Protection
Dustproof, splashproof, UV radiation resistant


Enclosure Color
White, RAL 9010


Enclosure Material
Coated aluminum


Design Features
Paintable





Speaker System



Speaker Type
Passive


Nominal Output Power
200 Watt


Frequency Response
90 - 17000 Hz


Nominal Impedance
8 Ohm


Recommended Amplifier Power
250 Watt


Max Output Level (Max SPL)
112 dB


Sensitivity
89 dB


Integrated Transformer
70V/100V or 8 Ohm operation


Coverage
160° x 15°


Recommended Placing
Outdoor, indoor





Speaker System Details



Driver Details
Speaker: 16 x full-range driver - 2.75" - paper





Miscellaneous



Included Accessories
Wall mounting bracket


Compliant Standards
IP54





Dimensions & Weight



Width
5.2 in


Depth
5 in


Height
45.7 in


Weight
26.01 lbs





Dimensions & Weight (Shipping)



Shipping Width
9.9 in


Shipping Depth
54.5 in


Shipping Height
12.3 in


Shipping Weight
32.76 lbs
