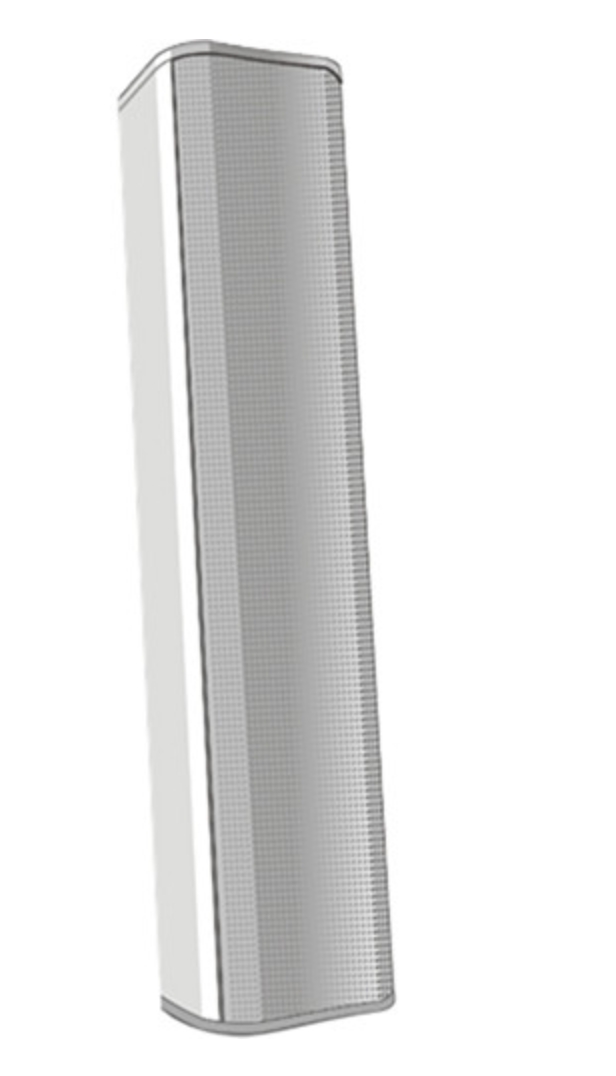

QSC AcousticDesign Series 8-Driver Column Surface-Mount Loudspeaker

QSC AD-S802T-WH Overview






The AcousticDesign series AD-S802T is an 8-driver column surface-mount loudspeaker. This premium full-range system is capable of 70 V/100 V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.






Key Features



Deliberately unobtrusive industrial design
Paintable enclosure and grill
Complete EASE, CLF, CAD and BIM information
Rugged aluminum construction
IP54 rating for dust and splash resistance
Powder-coated grills and weather-treated cones
Low saturation 70/100 V transformers
8 ohm low-impedance bypass


QSC AD-S802T-WH Specs


General



Product Type
Speaker


Enclosure Color
White, RAL 9010


Enclosure Material
Coated aluminum





Speaker System



Speaker Type
Passive


Nominal Output Power
120 Watt


Frequency Response
90 - 17000 Hz


Nominal Impedance
8 Ohm


Recommended Amplifier Power
120 Watt


Max Output Level (Max SPL)
108 dB


Sensitivity
87 dB


Integrated Transformer
70V/100V or 8 Ohm operation


Coverage
160° x 20°


Recommended Placing
Outdoor, indoor





Speaker System Details



Driver Details
Speaker: 8 x full-range driver - 2.75" - paper





Miscellaneous



Included Accessories
Wall mounting bracket


Compliant Standards
IP54





Dimensions & Weight



Width
5.2 in


Depth
5 in


Height
23.4 in


Weight
13.67 lbs





Dimensions & Weight (Shipping)



Shipping Width
9.9 in


Shipping Depth
32.4 in


Shipping Height
12.3 in


Shipping Weight
19.4 lbs
