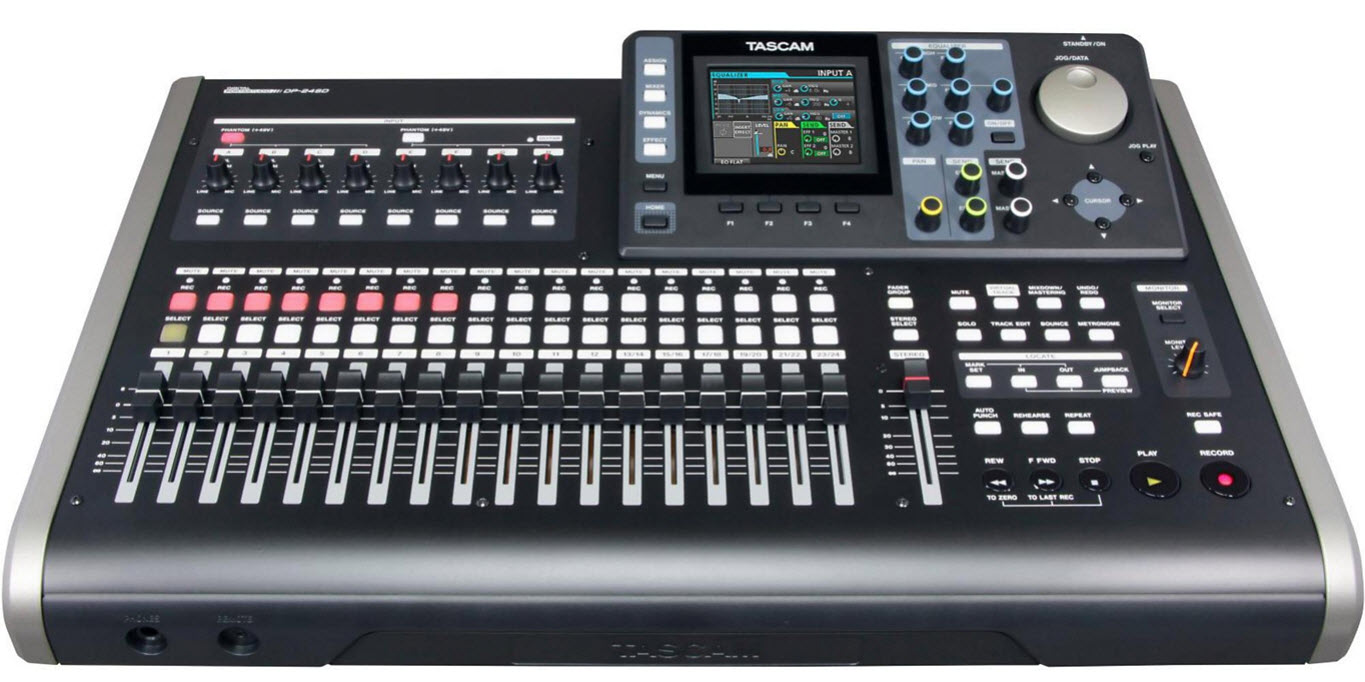

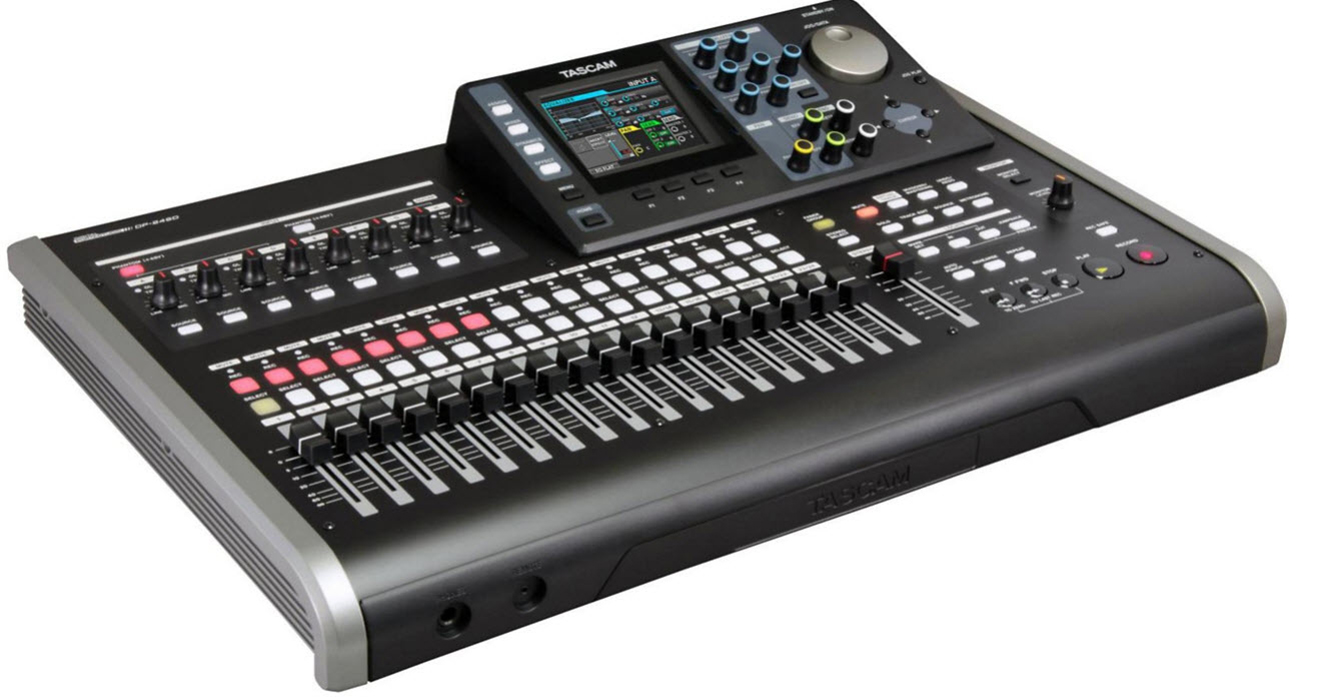

TASCAM DP-24SD 24-Track Digital Portastudio

OVERVIEW
High track capacity in a portable recorder.


Along with their inventory of smaller portable recording studios, Tascam maintains a line of more elaborate, detailed and capable all-in-one console recorders. The Tascam DP-24SD is a stand-alone tabletop recording studio that records 24 tracks to built-in solid state recording media. No fussing with onboard CD burners, cards and data transfer. The hard drive is built right into the recorder. Along with the convenience and power of an internal hard drive, the DP-24SD has a mountain of essential features that will help you present your productions with a professional sheen and clear, intelligible audio. The DP-24SD has 12 tracks that are selectable between MONO and STEREO. Set to STEREO for recording synthesizer, or set to MONO when recording live guitar or vocal. Not only that, you can create ideal settings for each track.Even with its high number of tracks and rich features set the DP-24SD is one of the easiest to use multi-track recorders on the market. The DP-24SD has 19 track faders and one master fader.



FEATURES

Simultaneous 24 track (DP-24) or 32 track (DP-32) playback
8 mono tracks + 12 mono/stereo selectable tracks (DP-32)
12 mono tracks + 6 stereo tracks (DP-24)
Mounted TMSS (TASCAM Multi Stage Sampling rate converter) provides high-quality sampling rate conversion
Integrated 32/40-input mixer to mixdown the 24/32 playback tracks with the 8 inputs and for bouncing
Simultaneous 8 track recording
16 or 24 bit, 44.1 or 48 kHz recording
8 XLR/TRS combo connectors
Phantom power supply for all inputs
High-impedance input available (INPUT-H)
Stereo RCA pin-jack output
2 effect send outputs (1/4" TS jack)
70mW/ch headphone amplifier
Peak-hold function at a level meter of the LCD
Sub-frame editing
MIDI IN/OUT for sending MTC/MMC signal



Order today and generate broadcast-quality recordings at home.


SPECIFICATIONS
DP-24SD 24-Track Digital Portastudio

XLR
Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), Balanced
Input impedance: 2.4k ohms
Nominal input level: -14dBu
Maximum input level: 2dBu


TRS
Connector: 6.3mm(1/4")TRS phone-jack, Balanced
Input impedance: 22k ohms or more
/ 1M ohms(when INPUT H, GUITAR selected)
Nominal input level: 4dBu
Maximum input level: 20dBu


STEREO OUT
Connector: RCA pin-jack, Unbalanced
Output impedance: 200 ohms
Nominal output level: -10dBV
Maximum output level: +6dBV


EFFECT SENDS
Connector: 6.3mm(1/4")TS phone-jack, Unbalanced
Output impedance: 200 ohms
Nominal output level: -10dBV
Maximum output level: +6dBV


MONITOR OUT
Connector: 6.3mm(1/4")TRS phone-jack, Balanced
Output impedance: 200 ohms
Nominal output level: -2dBu
Maximum output level: +14dBu


PHONES
Connector: 6.3mm(1/4")TRS phone-jack
Maximum output level: 70mW + 70mW (THD+N 0.1% or less, 32 ohms loaded)


MIDI IN / OUT
Connector
DIN 5 pin
Format: Standard MIDI format


USB
Connector
USB Mini-B type 4-pin
Format: USB2.0 High-Speed mass-storage class


REMOTE
Connector
2.5mm TRS jack
Power: Dedicated AC adapter (TASCAM PS-1225L, included)
Power consumption: 12W (when phantom power supplying)
Dimensions: 514(W)×104(H)×340(D)mm / 20.2"(W)×4.1"(H)×13.4"(D)
Weight: 6.2kg / 13.67 lb
Operating temperature: 5 to 35C / 41 to 95F
Accessories: AC adapter, 2GB SD card, USB cable, warranty card, owner's manual


Operating system requirements
Windows:
OS: Windows XP, Windows Vista, Windows 7, Windows 8
CPU: Pentium 300MHz or more
Memory: 128MB or more
USB: USB2.0
Macintosh:
OS: Mac OS X Jaguar (V10.2),Mac OS X Panther (V10.3),Mac OS X Tiger (V10.4),Mac OS X Leopard (V10.5),Mac OS X Snow Leopard(V10.6.8),OS X Lion(V10.7),OS X Mountain Lion(V10.8)
CPU: Power PC, iMAC, G3, G4 266MHz or more
Memory: 64MB or more
USB: USB2.0


Audio performance
Frequency response: 20Hz to 20kHz (+/-1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
S/N Ratio: 90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
THD: 0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

THSD: www.music-blvd.com $400
