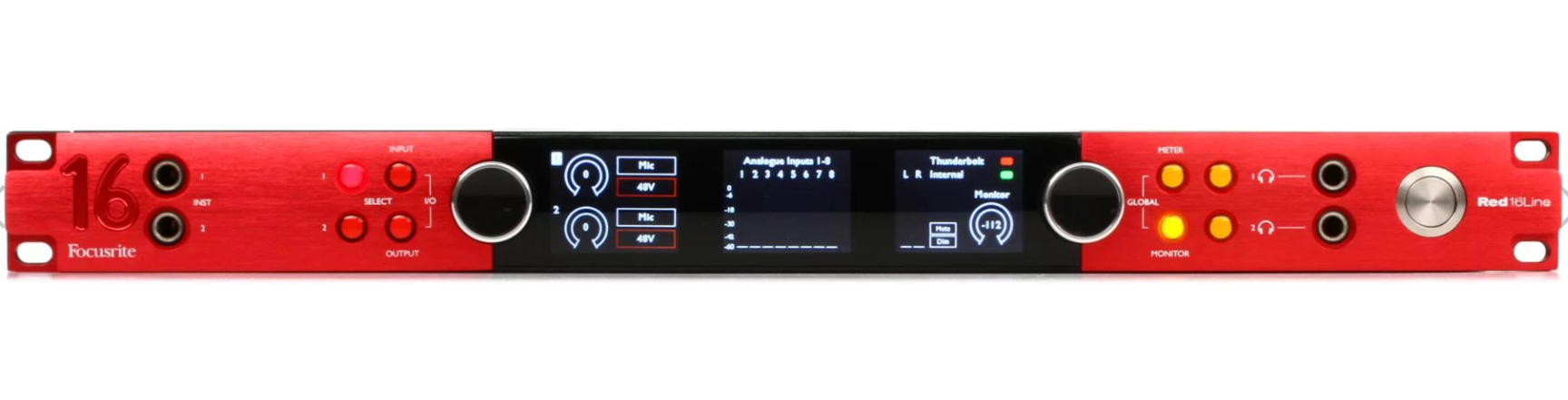

Focusrite Red 16Line Thunderbolt 3 Audio Interface

Focusrite Red 16Line Features:

• 64 x 64 Pro Tools | HD and dual Thunderbolt 3 audio interface
• 2 Red Evolution mic preamps
• Ultra-low-latency digital conversion and round-trip latency
• Up to 121dB of dynamic range
• Networked audio expansion over Dante
• L/R monitor outputs on TRS
• 16 channels of ADAT optical
• S/PDIF coaxial I/O
• Word Clock and Loop Sync I/O
• Free Brainworx bx_console re-creation of Focusrite's ISA 110 and ISA 130 modules
• 3-year warranty

Tech Specs

• Computer Connectivity:Thunderbolt
• Form Factor:Rackmount
• Simultaneous I/O:64 x 64 (includes all I/O)
• A/D Resolution:24-bit/192kHz
• Number of Preamps:2 x mic, 2 x instrument
• Phantom Power:Yes
• Analog Inputs:2 x 1/4" (instrument), 2 x DB-25 (line 16 ch), 2 x XLR (mic)
• Analog Outputs:2 x DB-25 (line 16 ch), 2 x 1/4" (monitor out)
• Digital Inputs:2 x USB-C (Thunderbolt 3), 2 x DigiLink, 2 x Optical (ADAT), 1 x Coax (S/PDIF)
• Digital Outputs:2 x USB-C (Thunderbolt 3), 2 x DigiLink, 2 x Optical (ADAT), 1 x Coax (S/PDIF)
• Headphones:2 x 1/4"
• Thunderbolt:2 x Thunderbolt 3
• Data I/O:2 x Ethernet (Dante)
• Clock I/O:In/Out (word clock), In/Out (loop sync)
• Software:Focusrite Control, Red plugin suite, Softube Time and Tone plug-ins
• OS Requirements - Mac:OS X 10.9 or later
• Rack Spaces:1U
• Height:1.73"
• Width:19"
• Manufacturer Part Number:AMS-RED-16-LINE
