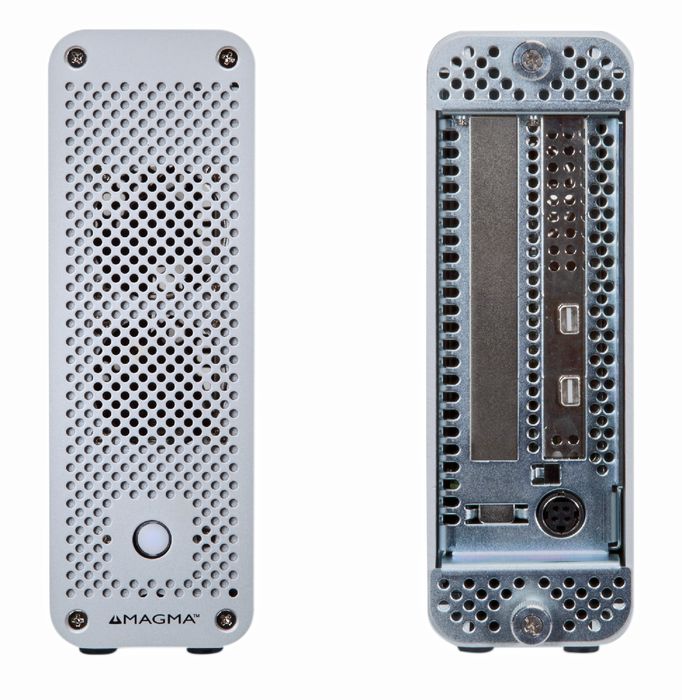

MAGMA ExpressBox 1T - 1 slot Thunderbolt to PCIe expansion

MAGMA
User-friendly Thunderbolt PCIe expansion chassis for connecting one PCIe card.

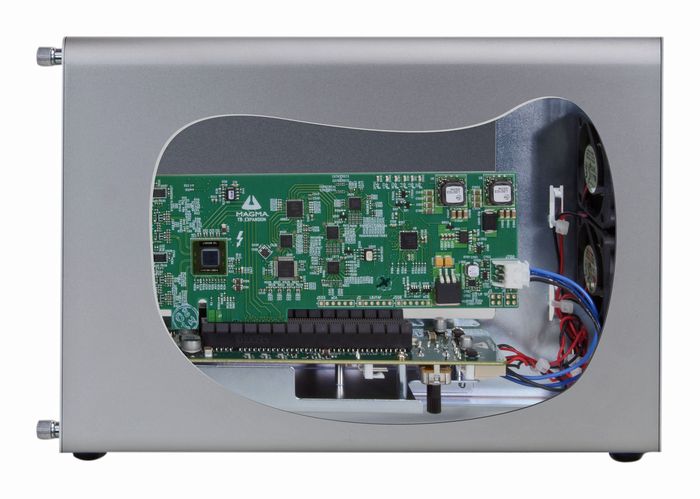

Enhance the power of your Thunderbolt equipped computer with the Magma ExpressBox 1T and harness lightning-fast throughput over a single cable via Thunderbolt technology. ExpressBox 1T enables serious professionals to use specialty PCIe cards with any Thunderbolt-equipped computer, so that you can achieve high performance wherever your work takes you. Add a PCIe card to ExpressBox 1T and your computer turns into a powerful workstation capable of HD video capture and editing, media transcoding, audio processing, data processing, or high-speed storage and networks. Designed with Studios in Mind Need a quiet work environment for your recording or video projects? ExpressBox 1T features quiet ventilated cooling with two user-controlled fans, allowing you to adjust fan speed and noise level based on your working environment needs. User-Friendly Expansion Chassis ExpressBox 1T offers quick and easy installation for its users. Open the chassis with two thumbscrews, no tools required. The card carriage slides right out, providing quick access to the PCIe slots and easy installation of cards.



Features

Attach a PCIe card to Thunderbolt equipped mobile and all-in-one computers
Transfer data at up to 10 Gbps, 2x faster than USB 3.0 and 12x faster than FireWire 800
Daisy-chain up to six Thunderbolt devices
Connect to high-resolution display, such as DisplayPort, mDP, HDMI, and VGA monitors
Easy Plug and Play installation
Supports any compatible x1, x4, x8 or x16 PCIe card
Two Thunderbolt connectors
Two cooling fans with speed control
Rugged extruded aluminum enclosure



Order this amazing connectivity solution for your studio today!



ExpressBox 1T - 1 slot Thunderbolt to PCIe expansion Specifications:


Model
EB1T Thunderbolt to PCIe Expansion - 1 Slot
Technology
Backplane
(1) PCI Express Slot (For cards that are 7.75" or less
- Physical - x16 PCIe 2.0
- Electrical - x4 PCIe 2.0 (Thunderbolt spec)
Cable Thunderbolt (Sold Separately)
Interconnect Bandwidth 10 Gbps (1.25GBps) Bi-directional
Enclosure
Material Heavy-Duty Extruded Aluminum
Dimensions 9.5” L x 2.3” W x 6.9” H
(249mm x 58mm x 174mm)
Weight 3.0 lbs (1.4 kg)
System Cooling (2) Fans with Speed Control
Power Supply 65W Power Supply
100-240 VAC, 47-63HZ
Environmental
Ambient Temperature 0º to 50º C
Storage Temperature -20º to 60º C
Relative Humidity 5% to 85% non-condensing
Compliance
Regulatory
FCC Class A Verified
RoHS Compliant
CE Compliante
Supported Operating Systems
Mac OS X 10.6.8 or higher
Warranty
30 Day Money back guarantee 1 year return to factory
