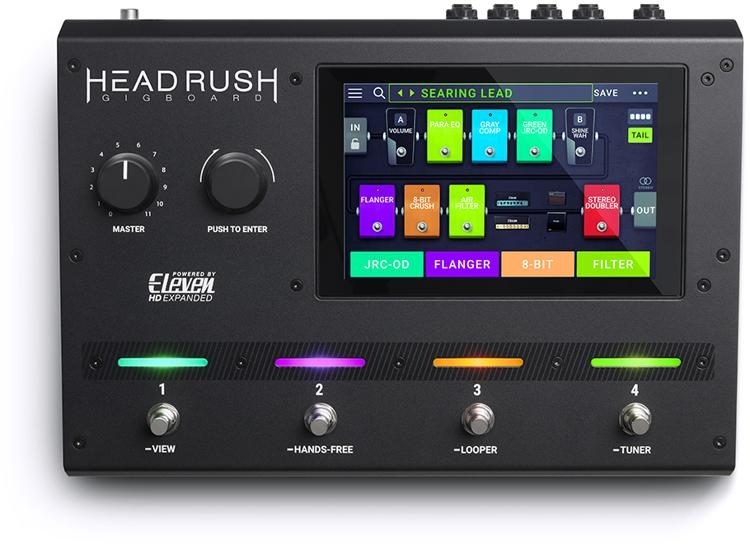

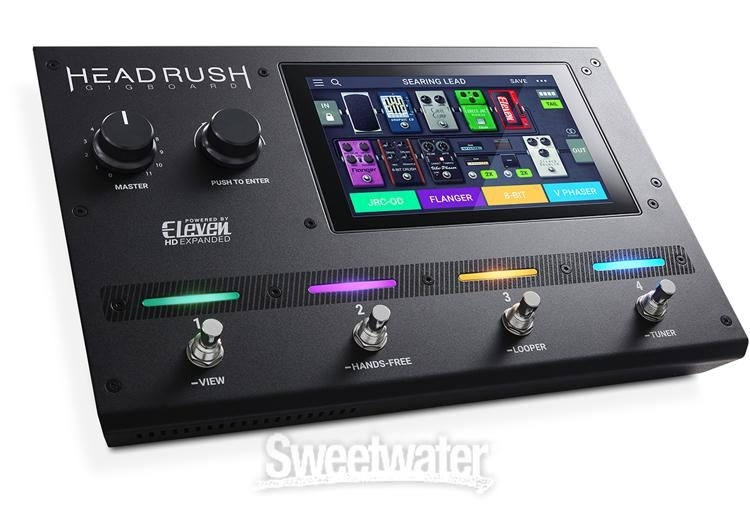

Headrush Gigboard Guitar FX and Amp Modeling Processor

Small on Real Estate. Big on Guitar Tone.
Sweetwater welcomes the latest in HeadRush's esteemed line of floor-based modeling and FX units: the textbook-sized Gigboard. Gigboard's 7" full-color touch display and single rotary encoder make it fast and intuitive to start building the guitar rigs of your dreams. Choose from limitless presets for instant inspiration, or effortlessly blend dozens of amps, cabinets, mics, and pedals totaling thousands of custom combinations. Then output to the PA/FRFR of your choosing, or port directly into your DAW over USB. You can even import your own third-party cabinet impulse responses for truly expandable pro-level results. Gigboard's dedicated looper (up to 20 minutes) and tuner switches make it so you never get lost on a dark stage. Underneath, HeadRush's Eleven HD Expanded modeling engine and quad-core DSP brilliantly model the latest in current must-have gear as well as timeless classics. A license for Pro Tools First, preconfigured for your HeadRush Gigboard, is included with purchase.














Now Playing: Introducing HeadRush Gigboard | Small Form BIG SOUND







Introducing the HeadRush Gigboard







HeadRush Gigboard | Creating a Rig







HeadRush Gigboard | External Amp Control







HeadRush Gigboard | FX Loop







HeadRush Gigboard | Hardware Assign and Scenes







HeadRush Gigboard | Pro Tools First & Midi Program Changes







HeadRush Gigboard | Global Settings






A dynamic tonal tool
Thanks to Gigboard's quad-core DSP system, every amp and pedal model you select greets you with the detail, touch response, and clarity you'd expect from the genuine article. And with a collection of models that range from legendary tube amps to highly sought-after microphones, you're able to conjure a massive array of these sounds with the tap of a toe. Factor in Gigboard's support for third-party cabinet impulse responses, and you have an expandable tonal tool that is sure to inspire.
Hands-on tweakability
The first time you touch your finger on Gigboard’s 7" full-color touch display, you'll already have a good idea of how simple it is to select models, tweak their tone, change your signal path, and save settings. Select an effect simply by tapping on it, change its value using the familiar rotary encoder, and change the order with a simple swipe.
Third-party IR support
Support for aftermarket cabinet impulse responses makes Gigboard a forward-looking, expandable amp platform from which you’ll always draw inspiration.






Flexible I/O suits any setup
Gigboard’s wide range of ins and outs tailors this pedalboard to virtually any setup:

Use Gigboard to front-load your high-headroom amp with an unbelievable range of coveted amp flavors and the latest digital FX.
Run Gigboard’s direct-out into a performance PA or set of practice headphones and leave your amp behind.
Use Gigboard as a high-quality recording platform into your DAW over USB — never to mic a cab again.

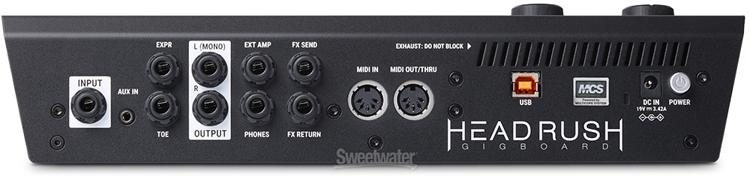

But that’s not all. On the back, you’ll find an expression-pedal jack for added control over your tonal parameters. MIDI in/out/thru opens up a world of control possibilities for your gear, multiple systems, or even your entire performance. Finally, an effects loop integrates your favorite stomps and rack gear to weave your own tonal DNA into the mix.




HeadRush Gigboard Amp and FX Modeling Processor Features:

Floor-based modeling and multi-effects unit with a touchscreen interface
Powerful Quad-core DSP system and Eleven HD Expanded modeling engine
7" touchscreen interface makes editing and organizing your tones a piece of cake
Dozens of amplifier, cabinet, microphone, and effects models onboard
Third-party impulse response support for expandable cab options
4 rugged footswitches control effects switching, preset management, and more
Onboard looper with 20 minutes of looping time
MIDI in/out/thru for expanding control of a larger system
USB allows for direct recording, system updates, and more
Convenient headphone output
Hands-free mode is perfect for making tonal changes on the fly







Tech Specs

Pedal Type: Multi-FX
Analog/Digital: Digital, Eleven HD DSP
Effects Types: 6 x Distortion, 8 x Rotary, 7 x Dynamics/EQ, 13 x Modulation, 7 x Reverb/Delay, 7 x Expression
Amp Modeling: 34 x Amps, 15 x Cabinets, 10 x Mic Models, Impulse Response support
Looper: 20 minute record time
Inputs: 1 x 1/4" (instrument), 1 x 1/8" (aux in), 1 x 1/4" (FX return)
Outputs: 2 x 1/4" (L/R, mono), 1 x 1/4" (external amp out), 1 x 1/4" (FX send)
MIDI I/O: In, Out/Thru
USB: 1 x Type B (stream live, reamp feature)
Headphones: 1 x 1/4"
Other I/O: 2 x 1/4" (expression)
Features: 7" Touch Screen, 24-bit/96kHz, Quad Core DSP
Software: Pro Tools First HeadRush Edition, Celestion IR download card
Power Source: 19V DC power supply (included)
Height: 2.64"
Width: 12.96"
Depth: 8.88"
Weight: 7.14 lbs.(Shipping approx. 9 lbs.)
Manufacturer Part Number: GIGBOARD
