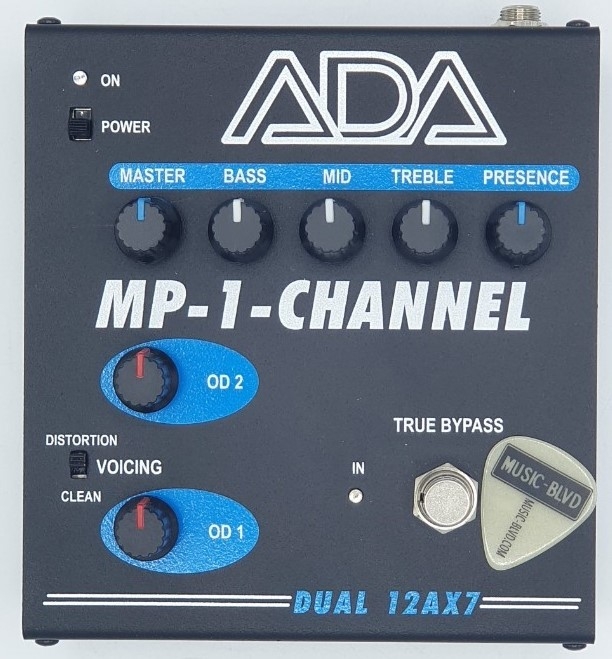

A/DA MP-1-Channel Dual 12AX7 Clean Overdrive Distortion Pedal

A/DA MP-1-Channel Dual 12AX7 Clean Overdrive Distortion Pedal
The new ADA MP-1-CHANNEL pedal clones the classic tone of the original MP-1 rack mount guitar preamp
The MP-1 Clone
Imagine having the classic ADA MP-1 tone available on your pedal board. The new ADA MP-1-CHANNEL is a pedal version of the renowned MP-1 rack mount guitar preamp. The MP-1-CHANNEL employs the 4-stage vacuum tube design taken from our ground breaking MP-1 MIDI TUBE PREAMP to achieve the same rich tone that made it the staple for most of the touring bands in the late 1980s and early 1990s. The small package, a 12-volt power requirement and a true bypass switch make the MP-1-CHANNEL easy to integrate into your pedal board system.
The MP-1-CHANNEL’s pair of hand-selected, high-gain, low-noise 12AX7A vacuum tubes run at 270 volts to produce all the sound of the original preamp that caught everyone’s attention – from players to listeners.
Former MP-1 Guitarists
Paul Gilbert, Kirk Hammett, Vito Bratta, Jamie Glaser, Bill Connors, Wayne Johnson, Dave Mason, Bruce Bouillet, Vernon Reid, Steve Bertek – just to name a few – created their unique tone with the MP-1. Now you can do it with the MP-1-CHANNEL too.
Put the warm sound of tubes on your digital tracks
The MP-1-CHANNEL, when connected to our GCS series of guitar cabinet simulators, becomes an incredibly versatile and easy-to-use all-analog direct recording preamplifier with cabinet simulation.
Take a listen or plug in now
In short, we’ve shrunk the package, but kept the tone. Check one of the many online videos or visit an ADA Dealer to hear how good a pair of tubes can make you sound.
A/DA MP-1-Channel Dual 12AX7 Clean Overdrive Distortion Pedal Features:


Selected, dual high-gain, low-noise 12AX7 vacuum tubes


270 volt internal power supply from a standard 12VDC AC Adapter (AC Adapter included)


CLEAN and DISTORTION Voicings


OD1 and OD2 dual Drive controls for smooth overdrives to crusty distortion


The famous ADA Tone Stack includes a PRESENCE control for “glassy” definition


The MID tone control’s range has been extended beyond the original MP-1 design to add more modern tone shapes including a very deep mid-range scoop and brash mid boost that can cut through anything


AC Adapter: 12VDC at 800mA minimum. Input is 90VAC to 250VAC at 50/60Hz


All-Steel industrial grade enclosure for better shielding


Pedal dimensions: 5.0” x 5.4” x 1.8” W x D x H


Shipping weight: 2.4 lbs with AC Adapter


Hand made in California


www.music-blvd.com 399.95
