Hammond SK1 Combo Organ

B3 In a Box: The Hammond SK1
A Hammond B3 you can tuck under your arm? Amazingly, the Hammond SK1 packs the swirling sonic fortitude of the legendary B3 into a tidy package weighing in at under 16 pounds. The first Hammond portable to feature a wide range of Extra Voices, the SK1's Drawbar section serves up genuine B3 gestalt, replete with all the traditional features: real mechanical Drawbars, Chorus Vibrato, Touch-Response Percussion - and an outrageously convincing digital Leslie rotary speaker emulation. You also get Vx and Farf combo organ models plus a potpourri of fine classical Pipe Organ voices derived from Hammond's 935 Church Organ. Acoustic and Electric Pianos, Clavs, Accordions, Vintage String Synth, Wind Instruments and Tuned Percussion round out the soundset. When it comes to organ sounds, most purists insist on the real thing. The SK1 walks like a Hammond - and talks like a Hammond. It's just several hundred pounds lighter and fits in your Mini. The Drawbar section is acompleteHammond Organ with all the functions. Hammond's VASE III digital tone-wheel sound generators deliver voicings so convincing, you'll be looking around for a hidden Leslie cabinet. If you're hankering for those swirluptuous, authentic B3 tones - but don't have a road crew and a tractor-trailer, this is your chance. Hook up with the Hammond SK1 and give your music some lovin'. Hammond SK1 Combo Organ Features at a Glance:

Sound generator - organ section: 2 x VASE III digital tone-wheels, transistor organ and pipe organ; extra voice section: VASE III
Polyphony: manual (except pipe organ): 61 notes; pedal (except pipe organ): 8 notes; maximum (on pipe organ): 63 notes; Extra Voice section: 63 notes
Keyboard: 61-key, C1 to C6
Drawbars: 9 pitches, assignable for upper, pedal, lower
Effects: Vibrato and Chorus, Overdrive, Multi Effects (8 Programs), Reverb (Digital, 11 Programs)
Equalizer: Organ: bass, mid (sweep), treble, tone; Extra Voice: bass, mid (sweep), treble
Master eq: bass, mid gain, mid frequency, treble
Controllers: Volumes: Master Volume, Music Volume, Extra Voice Volume; Switch: Power on/off
Music player: File Format: WAV (44.1Khz, 16bit, stereo), MP3 (44.1Khz, 128kbps, stereo); Control: Song, play/pause
MIDI: 9 templates; External Zones: 3 Zones, assignable to any keyboard
Storage: USB flash drive

The Hammond SK1: for those organ(ic) sounds you can't get anywhere else!

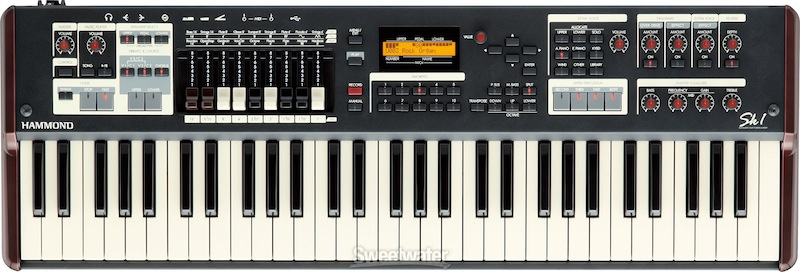

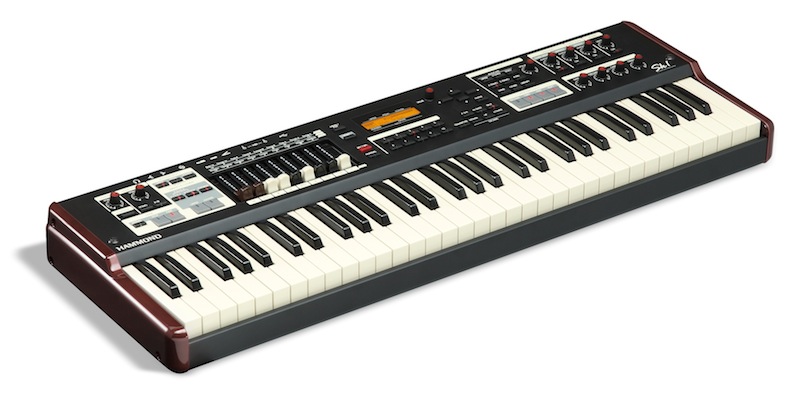

SK1 Combo Organ Image Gallery












Specification
Detail


Sound Engine Type(s)
Modelig


Number of Keys
61


Type of Keys
Waterfall


Other Controllers
9 x Drawbars


Polyphony
Full


Wave Memory
No Wave Memory


Number of Presets
100 User, 100 Preset


Expansion
No Expansion


Number of Effects
8


Effects Types
Lesie, Vibrato, Chorus, Overdrive, Reverb, Sustain


Arpeggiator
No


Sampling
No


Audio Playback
No Audio Playback


MIDI Sequencer
No Sequencer


USB
Yes


Number of Audio Inputs
0


Audio Input Types
No Audio Inputs


Number of Audio Outputs
3


Audio Output Types
2 x TS, 1 x TRS (Headphone)


Number of Digital Inputs
0


Digital Input Types
No Digital Inputs


Number of Digital Outputs
0


Digital Output Types
No Digital Outputs


MIDI I/O
2 x In, 1 x Out


Pedal Inputs
Expression, Foot Switch


Height
3.875"


Width
35.25"


Depth
12"


Weight
15.5 lbs.


Power Supply
AC Adaptor AD3-1250


Notes
8-pin Leslie jack (channels 1 and 3 available)


Manufacturer Part Number
SK-1
