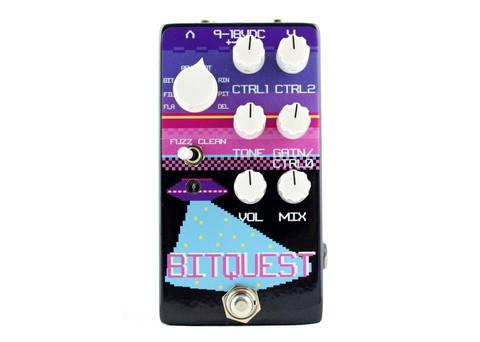

Dr. Scientist Sounds Bitquest Multi-Effect

Dr. Scientist Sounds Bitquest
If you’re on a quest that takes you far from home, you can’t be weighed down. You never know when you’ll need to duck under a laser cannon, or fight a giant eyeball, and you need to have portable and practical tools to face whatever alternate reality lays in store. It’s the same thing with your tone--sometimes it pays to have a compact, digital multi-tool that covers a wide range of tone needs. Enter the BitQuest: Complete with eight digital effects that work with or without a built in digital fuzz, the BitQuest offers flanger, HP/LP filter, bit crusher, infinite reverb, notch filter, ring mod, pitch shift and glitch delay, all in one pedal. No matter where the future takes you, BitQuest has got you covered.

Dr. Scientist Sounds Bitquest Features:

Operation:
Mono input, mono output
Power Requirements:
9VDC @ 75mA, 18VDC @ 150mA, 2.1mm center negative plug
Input/Output Impedance:
500k/1k
Bypass:
True bypass using soft touch switch and relay

Knobs

Mix:
Dry signal only at min, Wet signal only at full
Vol:
Wet signal level
Treble:
+/-15dB peaking filter centred at 3kHz
CTRL0:
In Fuzz Mode this is the gain control, in Clean Mode this controls an effect parameter, depends on patch
CTRL1:
Controls an effect parameter, depends on patch
CTRL2:
Controls an effect parameter, depends on patch


Toggle Switch:
Fuzz Mode adds a versatile digital distortion to the effects, Clean Mode takes away the fuzz and adds an extra control parameter.
Expression Input:
Controls CTRL0, TRS input, 50kΩ
Warranty:
Limited Lifetime
