Delightfully Playable Semi-modular Analog Goodness
The Moog Grandmother semi-modular analog synthesizer had us at "built-in spring reverb," and there is plenty more creative potential here than meets the eye. You can start playing and designing sounds immediately — no patching required. The onboard arpeggiator and sequencer are a blast to play with, and you can even save three sequences for instant recall anytime. And with its 32-note Fatar keybed, the Grandmother is one of the best-feeling compact analog synths you'll find. Whether you need it for stage or studio, the Moog Grandmother offers a fresh take on the classic Moog sound.
Now Playing: Moog Grandmother — Moogfest First Look
Adrian Younge's Thesis On Sound ft. Moog Grandmother
Curiousity moogmusicinc Listen on SoundCloud
Robotic Subotnik moogmusicinc Listen on SoundCloud
Cosmic Inflation moogmusicinc Listen on SoundCloud
Lost In Space moogmusicinc Listen on SoundCloud
Industrial Percussive Sequence moogmusicinc Listen on SoundCloud
Quantum Fluctuations moogmusicinc Listen on SoundCloud
In Orbit moogmusicinc Listen on SoundCloud
Helical Motion moogmusicinc Listen on SoundCloud
Elastic Drone moogmusicinc Listen on SoundCloud
Subatomic Particles moogmusicinc Listen on SoundCloud
1st Stars moogmusicinc Listen on SoundCloud
Trans-Dimensional Transmissions moogmusicinc Listen on SoundCloud
Lunar Campfire moogmusicinc Listen on SoundCloud
Watercolor Marimba moogmusicinc Listen on SoundCloud
Afterglow Light Pattern moogmusicinc Listen on SoundCloud
Accelerated Expansion moogmusicinc Listen on SoundCloud
Dark Energy moogmusicinc Listen on SoundCloud
Dextre Tests moogmusicinc Listen on SoundCloud
Venusian Wind Chimes moogmusicinc Listen on SoundCloud
Axial Load moogmusicinc Listen on SoundCloud
Solar Arc moogmusicinc Listen on SoundCloud
Low Gravity Vibraphone moogmusicinc Listen on SoundCloud
Promobot IR77 moogmusicinc Listen on SoundCloud
Tracks provided by SoundCloud
Classic Moog architecture
The colorful interface on the Moog Grandmother makes its lineage clear. You have easy access to dual analog oscillators, each with triangle, saw, and square waves. You can add noise at the oscillator mixer stage, and a utility section features a patchable 1-pole highpass filter and a bipolar attenuator. The classic 4-pole ladder filter offers a convenient key-tracking switch and large controls that are easy to find even in the dark. An analog LFO and ADSR envelope generator complete the onboard modulation options — and synthesists at Sweetwater have come to love the dedicated fader to control envelope sustain.
Built-in spring reverb for unique sound design capabilities
Spring reverb has a unique character, with impressive sonic depth and vibrance. If you've played with a real spring reverb unit, you know that it's difficult to find digital emulations that come close to the real thing. And that's why Moog packed a real analog spring reverb into the Grandmother. It sounds fantastic and offers creative potential never before found on a Moog synthesizer.
All the connectivity

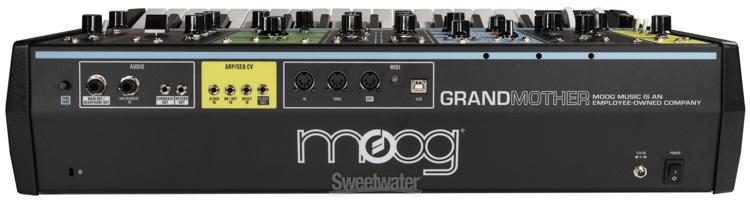

Right out of the box, the Moog Grandmother is ready to play, no patching necessary. For your Eurorack rig, Mother-32, DFAM, or other modular synthesizers, you've got a total of 41 patch points including 21 inputs, 16 outputs, and a 4-jack passive mult. You've got DIN MIDI In, Out, and Thru ports, plus USB MIDI for computer connectivity. Basically, you're ready to integrate with any modern production workflow.
Moog Grandmother Semi-modular Analog Synthesizer Features:
Semi-modular monophonic analog synthesizer with 41 patch points
32-note, velocity-sensitive Fatar keybed
Built-in spring reverb can process internal and external sounds
Semi-modular design — no patching required, but ready to integrate with Eurorack
All normalized connections can be interrupted, for complete modular integration
Flexible arpeggiator/sequencer, with 3 preset locations for your favorite sequences (up to 256 notes each)
2 oscillators with triangle, saw, square, and pulse waveforms, with PWM and Linear FM inputs
4-pole, 10Hz-20kHz ladder filter
1-pole highpass filter
Analog ADSR envelope generator, with dedicated fader for sustain-stage manipulation
Analog LFO can reach audio rates
MIDI connectivity via DIN MIDI in/out/thru and USB
41 patch points include 21 inputs, 16 outputs, and a parallel-wired 4-jack passive mult
1/4" audio input for external signals
Tech Specs
Type: Semi-modular Synthesizer
Analog/Digital: Analog
Polyphony: Monophonic
Type of Keys: 32-key Fatar Keyboard, Velocity-sensitive
Other Controllers: Mod Wheel, Pitchbend Wheel, Variable Glide
Oscillators: 2 x Analog VCO
Waveforms: Triangle, Sawtooth, Square wave, Narrow Pulse
Noise Generator: White Noise
Envelope Generator: ADSR
LFO: 1 x Analog LFO with Audio
VCA: Yes
Filter: -24dB/Octave 4-Pole Ladder filter , Variable Highpass Filter
Effects Types: Spring Reverb
Arpeggiator: Yes
Sequencer: 256 steps per sequence, store up to 3 sequences
Analog Inputs: 1 x 1/4" (instrument)
Analog Outputs: 1 x 1/4" (main out/headphones), 1 x 1/8" (Eurorack out), 1 x 1/8" (reverb out)
MIDI I/O: In/Out/Thru/USB
Other I/O: Clock in, Clock out, Reset in, On/Off in, 41 x Patch Points
USB: 1 x Type B
Power Supply: 12V DC 2A power supply (included)
Height: 5.5"
Width: 23"
Depth: 14.25"
Weight: 16 lbs.
Manufacturer Part Number: MOD-GRAND-01
Shipping approx. 22 lbs.
